CPK DRUM DATA (Front Side)
NP#
NP Number
CASTING CODE
NES CODE
DIMENSION (11)
Ø156
155.75-156.25
DIMENSION (8)
Ø246
245.75-246.25
DIMENSION (55) 4 Hole
Go/NG
12.5-12.9
DIMENSION (10)
Ø134
133.75-134.25
DIMENSION (12)
Ø217
216.75-217.25
Remarks
Email
Submit
CNC 2nd Side Machining with 08 hole Drilling & 02 Holes Counter
DISK FR BRAKE (262mm Painting)
NP# 3AM 2nd side
NP Number 3AM 2nd Side
CASTING CODE 3AM 2nd side
3AM NES CODE 2nd side
Dimension 11
Ø134 ±0.25
Dimension 8
Ø61 +0.03,+0.076
Dimension 12
12.50 +0.4
Dimension 18
6.0 +0.3
Dimension 22
21.60 +0.2
Dimension 17
7.30 ±0.7
Remarks
Email
Submit
MOS
OPS

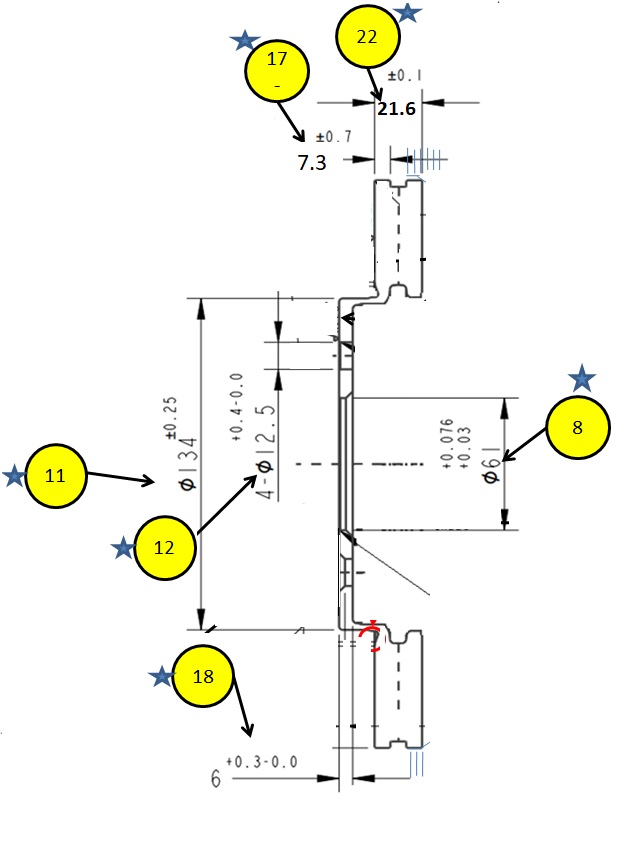

Pictorial View
Pre Operation Check Sheet
