CPK DRUM DATA (Front Side)

NP#

NP Number

CASTING CODE

NES CODE

DIMENSION (11)

Ø156

155.75-156.25

DIMENSION (8)

Ø246

245.75-246.25

DIMENSION (55) 4 Hole

Go/NG

12.5-12.9

DIMENSION (10)

Ø134

133.75-134.25

DIMENSION (12)

Ø217

216.75-217.25

Remarks

Email

Balancing & Correction

DISK FR BRAKE (262mm Painting)

NP# 3AM Balancing

NP Number 3AM Balancing

CASTING CODE 3AM Balancing

3AM NES CODE Balancing

DIMENSION (-)

1500 GMM

Static Unbalance Amount

DIMENSION (=)

1501-2600 GMM

Repairing limit (If Required)

DIMENSION (*)

90 degree max

Correction Angle (If Required)

DIMENSION (61)

Depth 1.0 MAX

After Correction Dimension

Remarks

Email

MOS

OPS

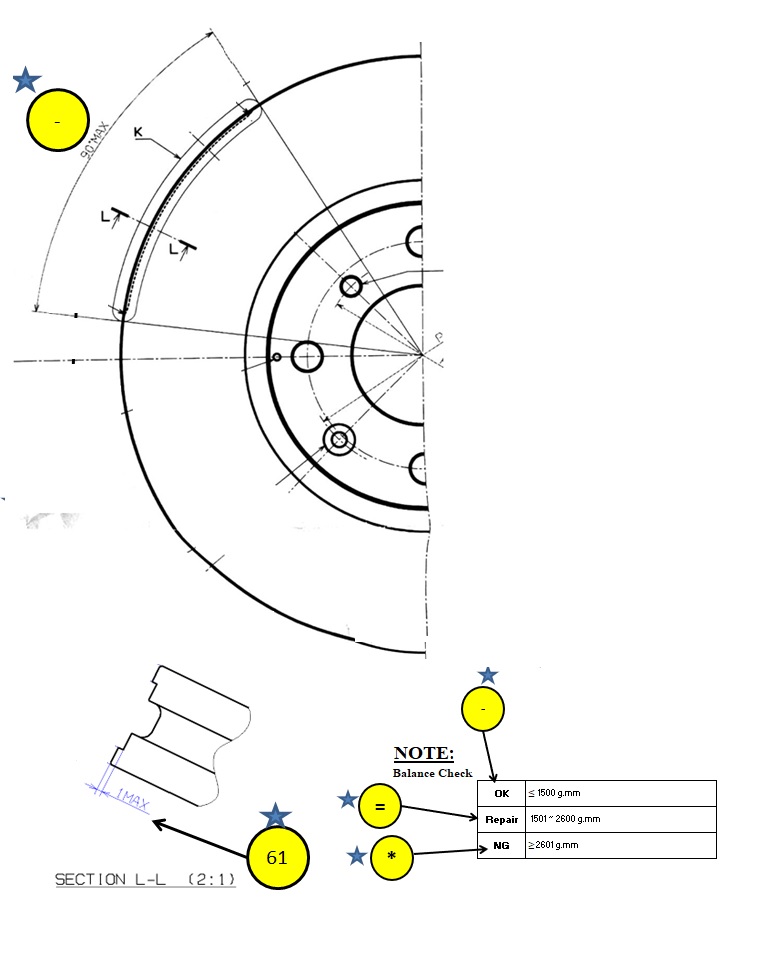

Pictorial View

Pre Operation Check Sheet
